Features:
* Audio and visual alarm function.
* Advanced unishaft drive, low noise.
* Eight self-compiled programs, with different speed and time setting.
* Shaking plate is made of electroplating aluminum, anti-rust or anti-corrosion.
*Â Automatic operation, auto-stop, timing, time display, parameters memory and recovery function.
*Â Automatic power-off protection system when the motor is overheating and temperature is out of control.
*Â Accessories: UV lamp(standard accessories), humidity controller, inlet air pipe, light system(optional accessories).Â
| Model | BJPX-2012 |
| Controller | PID |
| Display | LCD Â |
| Circulation Mode | Forced convection |
| Shaking Mode | Rotatory shaking |
| Drive Mode | Unishaft drive |
| Temp. Range | RT+5ºC~60ºC |
| Temp. Accuracy | ±0.1ºC |
| Temp. Uniformity | ±0.25ºC |
| Rotating Speed | 50~300rpm |
| Rotating Accuracy | ±1rpm |
| Vibration Range | Φ25mm |
| Heating Consumption | 800W |
| Timing Range | 0 ~500 hours |
| Shaking Plate Size | 850*560mm |
| Standard Capacity | 250ml*40 |
| Max. Capacity | 2000ml*12 or 1000ml*18 or 500ml*35 or 250ml*40 |
| Internal Material | Mirror stainless steel |
| External Material | Cold-rolled steel with anti-bacteria power coating |
| Safety Function | Audio and visual alarm for over-temperature; Alarm for over-speeds; Independent over-temperature protector; Shutdown protection for door opening; Leakage or over-current protection. |
| Consumption | 960W |
| Power Supply | AC110V/220V±10%,50/60HZ |
| Internal Size (W*D*H)(mm) | 870*550*395 (per unit) |
| External Size (W*D*H)(mm) | 1300*910*980Â (per unit) |
| Package Size (W*D*H)(mm) | 1400*1010*1130 (per unit) |
| Gross Weight (kg) | 410 (per unit) |
Features:
* Audio and visual alarm function.
* Advanced unishaft drive, low noise.
* Eight self-compiled programs, with different speed and time setting.
* Shaking plate is made of electroplating aluminum, anti-rust or anti-corrosion.
*Â Automatic operation, auto-stop, timing, time display, parameters memory and recovery function.
*Â Automatic power-off protection system when the motor is overheating and temperature is out of control.
*Â Accessories: UV lamp(standard accessories), humidity controller, inlet air pipe, light system(optional accessories).Â
| Model | BJPX-2012 |
| Controller | PID |
| Display | LCD Â |
| Circulation Mode | Forced convection |
| Shaking Mode | Rotatory shaking |
| Drive Mode | Unishaft drive |
| Temp. Range | RT+5ºC~60ºC |
| Temp. Accuracy | ±0.1ºC |
| Temp. Uniformity | ±0.25ºC |
| Rotating Speed | 50~300rpm |
| Rotating Accuracy | ±1rpm |
| Vibration Range | Φ25mm |
| Heating Consumption | 800W |
| Timing Range | 0 ~500 hours |
| Shaking Plate Size | 850*560mm |
| Standard Capacity | 250ml*40 |
| Max. Capacity | 2000ml*12 or 1000ml*18 or 500ml*35 or 250ml*40 |
| Internal Material | Mirror stainless steel |
| External Material | Cold-rolled steel with anti-bacteria power coating |
| Safety Function | Audio and visual alarm for over-temperature; Alarm for over-speeds; Independent over-temperature protector; Shutdown protection for door opening; Leakage or over-current protection. |
| Consumption | 960W |
| Power Supply | AC110V/220V±10%,50/60HZ |
| Internal Size (W*D*H)(mm) | 870*550*395 (per unit) |
| External Size (W*D*H)(mm) | 1300*910*980Â (per unit) |
| Package Size (W*D*H)(mm) | 1400*1010*1130 (per unit) |
| Gross Weight (kg) | 410 (per unit) |
Glazed Tile Roll Forming Machine is similar to roof panel Forming Machine .
This machine adopts unique welded-box as bearing supporting base and chain gear box. It is much stronger, safer and preciser.
Hangzhou Yibo Machinery Co.,Ltd, founded in 2003 is an professional machinery manufacturer for design, produce, service and trade.
Yibo's main products is Cold Roll Forming Machine, such as purlin forming machine, guardrail forming machine, roof panel forming machine, wall panel forming machine, tile forming machine, floor Deck Forming Machine, Roof Seaming Machine and so on.

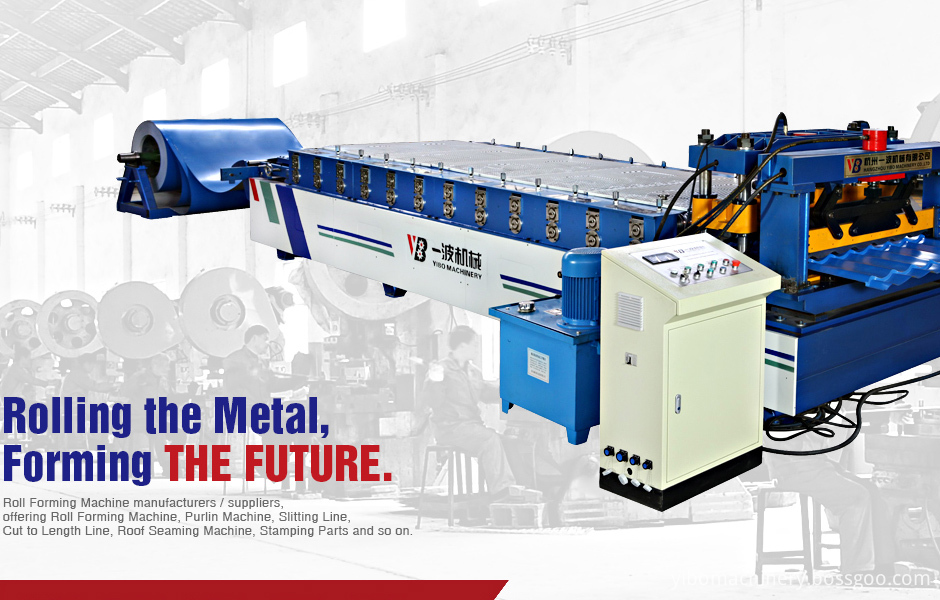

Glazed Tile Roll Forming Machine
Auto Glazed Tile Roll Forming Machine,Tile Roll Forming Machine,Glazed Tile Roll Forming Machine,Metal Roofing Roll Forming Machine
