We provide the offroad wheel rims, tyres and wheel and tyre package. Please find the details as below:
Â
| rim size | tyre size |
| 16x8 | LT265/75R16 |
| 17X9 | LT285/70R17 |
| 18X9 | 35X12.5R18LT |
| Â | Â |
For the alloy wheels, the MOQ will be just 4 pcs for the sizes which we have in stock.
For the steel wheel, we could made to order!
For the small order, our price is for EXW !
If any questions, please feel free to contact with us.
We provide the offroad wheel rims, tyres and wheel and tyre package. Please find the details as below:Â
| rim size | tyre size |
| 16x8 | LT265/75R16 |
| 17X9 | LT285/70R17 |
| 18X9 | 35X12.5R18LT |
| Â | Â |
For the alloy wheels, the MOQ will be just 4 pcs for the sizes which we have in stock.
For the steel wheel, we could made to order!
For the small order, our price is for EXW !
If any questions, please feel free to contact with us.
| Model | Gold dafeng 454 | Gold dafeng 454 |
| Drive Type | 4×2 | 4×4 |
| Engine | ||
| Engine Model | FD295TA | |
| Engine Type | inline,vertical,water-cooled,four-stroke | |
| Cylinder diameter(mm) | 95 | |
| Stroke(mm) | 115 | |
| Max Torque(N·m)/Revolving Speed(rpm) | ≥96.8/≤1575 | |
| Displacement(L) | 1.63 | |
| Fuel Tank Capacity(L) | 51 | |
| Engine Rated Power (kW/rpm) | 18.5 | |
| Rated Operating Conditions Fuel Consumption Rate(g/kW·h) | ≤250 | |
| Drive Train | ||
| Clutch | Dry,single-stage | |
| Standard PTO speed(rpm) | (540,1000)/(750,1000)/(540,750) | |
| Gears | 8F+2R/10F+2R | |
| Speed range(Km) | 2.24~28.61 | 1.73~22.04 |
| Steering type | mechanical steering | hydraulic steering |
| Gear Shift Mode | sliding gear shift | |
| Break System | ||
| Service Brake | pedal,mechanical drive,closed shoe type | |
| Parking Brake | locked pedal | |
| Hydraulic System | ||
| Hydraulic Output Flow(L/min) | 30 | |
| Hydraulic Output Valve | 1 way(optional) | |
| Working Device | ||
| Three-Point Suspension | postposition,Category I | |
| Max.Lifting Capacity(kN) | ≥4.16 | |
| Tillage Depth Adjustment | position adjustable | |
| General Parameter | ||
| Overall Dimension(L×W×H)mm | With cab | / |
| Without cab | 3105×1430×2090 | |
| Wheelbase(mm) | 1705 | 1755 |
| Min. operating weight(kg) | With cab | / |
| Without cab | 1340 | |
| Min. Ground Clearance(mm) | 420 | 335 |
| Min.turning radius(mm) | 2800 | 3000 |
| Maximum Pull(KN) | 5.88 | 7.35 |
| Front Tire | 4.0-16 | 6.0-16 |
| Rear Tire | 9.5-24 | |
| Optional Disposition | ||
| hydraulic steering | dual-stage clutch | |
| dual-stage clutch | shuttle gear(creeper gear) | |
| shuttle gear(creeper gear) | swing draw bar | |
| swing draw bar | draft and positional lifter | |
| draft and positional lifter | rear counter weight | |
| ROPS with canopy | ROPS with canopy | |
| 1 group hydraulic output | 1 group hydraulic output | |
Shan dong Gold dafeng Machinery co.,ltd, is a professional manuafacture factory located in Weicheng District, Weifang City, China nearby Qingdao port; . Specialize in farm implements and garden implements.
Farm implements include: Hay baler, Hay rake, Middle gear box rotary tiller, Side gear box rotary tiller, Heavy rotary tiller, Walking tractor rotary tiller, Straw chopper, Plough, Spreader, Mower, Digger, Harrow, Potato Harveter, Potato Planter, Cultivator, Ridger, 1-6ton Trailer...
Garden implements include: Road sweeper, Wood chipper, Front loader, Grass Clip, Backhoe, Log splitter, Grade, Snow blade, Snow blower, Slasher, Flail Mower, Finishing mower...
we have own two manufacturing factories to process the above implements. We mainly export Europe, Asia, Africa, South America and North America more than twenty countries. We already set up best relations with different clients after years of cooperation.
Our staff always stick to the Principle of QUALITY FIRST, COMPETITIVE PRICE, BEST SERVICE. We sincerely to establish the long term business partnership with all customers from domestic and abroad.You are warmly welcome to contact us whenever you are in need for our products and service; we are always ready for cooperation.

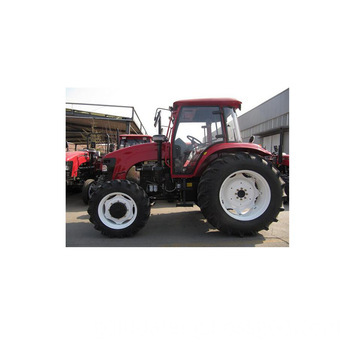

90Hp Wheeled Tractor,90Hp Farm Wheeled Tractor,Wheeled Farm Tractor With Cab,Agricultural Wheeled Tractor
